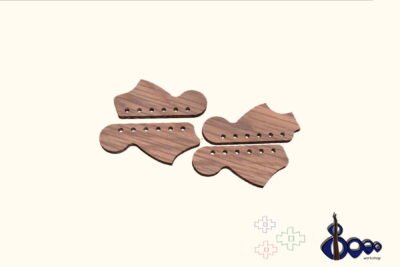

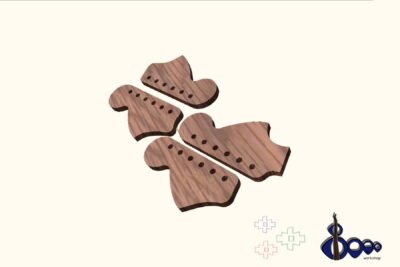

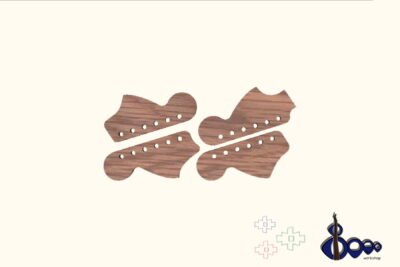

Fender headstock routing template (M-14/20)

Description

“Achieve professional results with ease! Our Fender headstock templates ensure precise routing and drilling for a variety of guitar models.”

Fender headstock routing template (M-14/20)

Our high-quality routing templates are specifically designed for Fender guitar models, including B72 Tele Deluxe, 70s Strat, USA 70s, HWY 1 HSS, Voodoo,Jimi Hendrix Tribute, and Yngwie Malmsteen. This two-piece set offers versatility and accuracy for headstock routing and neck headstock contouring, ensuring stability during tuner hole drilling.

With different material options like wood, 5mm MDF, 5mm HDF, and 6mm Acrylic, you can choose the best fit for your project.

Crafted with precision and attention to detail, our templates guarantee consistent results. They are made from durable materials and feature precise measurements to match the specifications of Fender guitar models. Whether you’re a professional luthier or a guitar enthusiast, our templates provide the necessary guidance for flawless headstock routing and tuner hole drilling.

It is compatible with a 6mm ball bearing router bit, enabling smooth and efficient routing. Crafted with precision and attention to detail, our templates guarantee consistent results. They are made from durable materials and feature precise measurements to match the specifications of Fender guitar models.

Whether you are a professional luthier or a guitar enthusiast, our template ensures consistent and reliable results every time.

• Set Configuration: Two-piece set (headstock routing template and neck headstock contour template)

• Compatible Guitar Model: 72 Tele Deluxe, 70s Strat, USA 70s, HWY 1 HSS, Voodoo,Jimi Hendrix Tribute, and Yngwie Malmsteen

• Material Options: Wood, 5mm MDF, 5mm HDF, Acrylic 6mm

• Dimensions: Customized to match the specific headstock and neck contours of each guitar model
• Router Bit Size: 6mm ball bearing router bit

Fender headstock routing template (M-14/20) is common shape used for:

1. 72 Tele Deluxe,
2. 70s Strat,
3. USA 70s,
4. HWY 1 HSS,
5. Voodoo,
6. Jimi Hendrix Tribute, and
7. Yngwie Malmsteen

Usage Instructions:

1. Begin by selecting the appropriate template for the specific Fender guitar model you are working with.
2. Securely position the routing template or contour template on the headstock using Double-stick Tape or suitable clamping methods.
3. Use the Router and gradually lower the 6mm ball bearing router bit into the wood, making shallow passes until the bearing glides smoothly along the template edge.
   Once the bearing can ride against the cavity wall, remove the template and continue routing to the
4. For tuner hole drilling, place the second template on the neck headstock to provide stability and accurate hole positioning.
5. Utilize a drill press or handheld drill with the recommended drill bit size to drill the tuner holes through the template.
6. Remove the templates once the routing and drilling processes are complete, leaving you with a perfectly routed headstock and accurately drilled tuner holes.

Enjoy professional-level results on your Fender guitar projects with our reliable and precise routing templates.

Package Includes:

• Fender headstock routing template (M-14/20)

Specification:

• Model: Fender headstock routing template (M-14/20)
• Material: Wood, HDF 5mm, MDF 5mm, Acrylic 6mm

Optional services:

• Engraving and Branding:
  • Additionally, Fender headstock routing template (M-14/20) can be engraved with any pattern using laser engraving or milling, if preferred.
  • We provide a unique branding service that allows you to showcase your brands on our products.
  • Consult our experienced marketing department for more information regarding our branding service and the possibility of featuring other brands on our products.
• Products Customization:
  • In terms of product customization, the existing products can be modified according to your specific requirements. We offer flexibility in adjusting the design, dimensions, and finish.
  • These modifications can be based on your ideas, the information you provide (such as desired model and dimensions), existing drawings, or blueprints.
  • If the product you are seeking is not currently offered, please contact us. We are more than happy to create a model or prototype tailored to your needs.

Contact us for prices.

Please make a note of your chosen Optional Services in the “Order notes form” on Checkout page.
This will allow us to offer you the best offer possible based on your preferences.
