Fender Headstock Routing Template M1 – Telesonic, ’90s Thinline, American Series (Deluxe/Standard), Nashville B‑Bender, US Fat
If you’re a professional luthier, repair technician, or serious builder looking for absolute precision and consistency when shaping Fender-style headstocks, this routing template set is the benchmark. The Fender Headstock Routing Template M1 provides a foolproof solution for clean, repeatable headstock shaping and accurate tuner hole alignment across multiple models and builds.
This set includes a headstock contour routing template and a second tuner hole drilling guide. These are fully compatible with a 6mm ball bearing router bit and designed to deliver flush, reliable contours that perfectly match the original Fender outlines.
🎸 Compatibility and Coverage
This template set covers six iconic Fender USA models:
- ✅ Telesonic
- ✅ 90s Thinline
- ✅ American Series American Deluxe
- ✅ American Standard
- ✅ Nashville B-Bender
- ✅ US Fat
Each template is based on verified outlines and dimensions from OEM specifications, ensuring 100% accuracy during routing and tuner drilling operations. Whether you’re repairing, cloning, or customizing, this tool ensures you’re working to a professional standard.
🔧 Material Options
We offer the Fender Headstock Routing Template M1 in multiple materials to suit your specific workshop needs and tooling preferences:
- 🌲 Wood – Ideal for traditionalists and test runs
- 🟫 MDF (3mm) – Smooth and economical
- ⬛ HDF (3mm) – Denser for better edge retention
- 🧼 Acrylic (6mm) – Transparent and stable for visual alignment
🛠️ How to Use
- Select the correct template for your model and secure it to your blank with double-sided tape or clamps.
- Using a ball bearing router bit, make shallow passes until the bearing follows the edge cleanly.
- For tuner holes, position the drill guide and use a press or handheld drill for precise alignment.
- Remove the template to reveal crisp routing and accurately drilled tuner holes.
🎨 Customization & Engraving
Need your shop logo engraved? Looking to tweak dimensions for a custom build? We offer full customization services including:
- Laser engraving (branding, shop logo, pattern work)
- Material and dimension customization
- Unique builds based on your drawings or blueprints
Please include any customization requests in the “Order Notes” at checkout.
📦 What’s Included

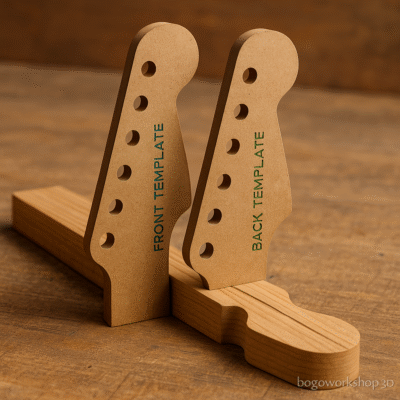

- 🪵 Fender Headstock Routing Template M1 (2-piece set)
- 📏 Routing contour + Tuner hole drilling guide
Built with luthiers in mind, the Fender Headstock Routing Template M1 delivers repeatable, reliable, professional-level results—cut after cut, build after build.
