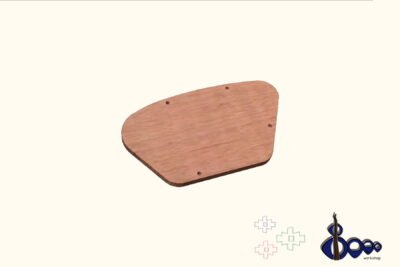

Control Cavity Routing Set (M-22/15.2 x 8.85)

Control Cavity Routing Set (M-22/15.2 x 8.85)

Control Cavity Routing Set (M-22/15.2 x 8.85)

Premium Quality Control Cavity Routing Set is designed for guitars and bass guitars, ensuring accurate and professional results. Cover Plate with dimensions 15.2 x 8.85 cm.

The set includes three essential templates:

  • Control Cavity Cover Plate routing template – 15.2 x 8.85 cm,
  • Control Cavity routing template, and
  • Control Cavity Frame routing template

It is compatible with a 6mm ball bearing router bit, enabling smooth and efficient routing.

>>> Different material options: wood, 5mm MDF, 5mm HDF, and 6mm Acrylic. <<<

Price:

40,00 60,00

Product options:
Subtotal Product:
Shipping Cost:
Total cost:
Login - with Social Account

Description

“Achieve precise control cavity routing with our comprehensive set. Perfect fit for all guitars and bass guitars.”



Control Cavity Routing Set (M-22/15.2 x 8.85)

Our high-quality control cavity routing set is designed for guitars and bass guitars, ensuring accurate and professional results. The set includes three essential templates:

  • Control Cavity Cover Plate routing template measuring dimensions 15.2 x 8.85 cm,
  • Control Cavity routing template, and
  • Control Cavity Frame routing template for recessing the shape to mount the Cover Plate securely.

With different material options like wood, 5mm MDF, 5mm HDF, and 6mm Acrylic, you can choose the best fit for your project.

Crafted with attention to detail, our templates guarantee consistency and reliability. The Control Cavity Cover Plate routing template provides the exact dimensions for the cover plate, ensuring a precise fit. The Control Cavity routing template enables accurate routing for the control cavity, while the Control Cavity Frame routing template ensures the recessed shape necessary for mounting the Cover Plate securely. Compatible with all guitars and bass guitars, our set is a must-have for professional luthiers and guitar enthusiasts.

It is compatible with a 6mm ball bearing router bit, enabling smooth and efficient routing. Crafted with precision and attention to detail, our templates guarantee consistent results. They are made from durable materials and feature precise measurements to match the specifications of different shapes of Control Cavity.

Whether you are a professional luthier or a guitar enthusiast, our template ensures consistent and reliable results every time.

  • Set Configuration: Three-piece set :
    1. Control Cavity Cover Plate routing template,
    2. Control Cavity routing template,
    3. Control Cavity Frame routing template
  • Control Cavity Cover Plate Dimensions: dimensions 15.2 x 8.85 cm
  • Compatibility: Suitable for all guitars and bass guitars
  • Material: High-quality, durable material for long-lasting use

Usage Instructions:

  1. Begin by selecting the appropriate Template Set with the desired shape and dimensions for the routing process.
  2. First, use the Control Cavity routing template. Securely position the Control Cavity routing template on the back of the guitar body using Double-stick Tape or suitable clamping methods. Ensure that the position allows enough space for easy installation of potentiometers and electronics.
  3. Measure the thickness of the body and subtract 5mm from the measurement. Add the template thickness to calculate the final routing depth for the Control Cavity. It’s important to leave at least a 5mm thick wall on the front of the guitar.
    Eg.  Routing depth = (body tickness-5) +  body tickness
  4. Use the Router with a 6mm ball bearing router bit. Gradually lower the bit into the wood, making shallow passes until the bearing smoothly glides along the template edge.
  5. Remove the templates once the routing process is complete.
  6. Next, use the Control Cavity Frame routing template. Adjust the position to maintain a consistent distance between the Control Cavity and the template in all directions. Securely position the Control Cavity Frame routing template on the back of the guitar body using Double-stick Tape or suitable clamping methods.
  7. The depth of the frame slot will depend on the thickness of the Control Cavity Plate and the desired Control Cavity depth, considering the height of the electronics/potentiometers.
  8. Use the Router with a 6mm ball bearing router bit. Gradually lower the bit into the wood, making shallow passes until the bearing smoothly glides along the template edge. Before the final pass, check how the Control Cavity Plate fits.
  9. Remove the template once the routing process is complete.
  10. Finally, use the Control Cavity Cover Plate routing template. Securely position the Control Cavity Cover Plate routing template on the material surface you want to use to cut the Cover Plate using Double-stick Tape or suitable clamping methods.
  11. Use the Router with a 6mm ball bearing router bit. Gradually lower the bit into the material you are using and make shallow passes. Leave two tabs in opposite directions that connect the Cover Plate to the material to prevent possible damage during the final cut.
  12. Remove the Control Cavity Plate routing template once the routing process is complete. Cut the connecting tabs and clean the spots where the tabs were positioned.

Enjoy professional-level Control Cavity routing results with our reliable and comprehensive set designed for all guitars and bass guitars.

Package Includes:

  • Control Cavity Routing Set (M-22/15.2 x 8.85)

Specification:

  • Model: Control Cavity Routing Set (M-22/15.2 x 8.85)
  • Material: Wood, HDF 5mm, MDF 5mm

Optional services:

  • Engraving and Branding:
    • Additionally, Control Cavity Routing Set (M-22/15.2 x 8.85) can be engraved with any pattern using laser engraving or milling, if preferred.
    • We provide a unique branding service that allows you to showcase your brands on our products.
    • Consult our experienced marketing department for more information regarding our branding service and the possibility of featuring other brands on our products.
  • Products Customization:
    • In terms of product customization, the existing products can be modified according to your specific requirements. We offer flexibility in adjusting the design, dimensions, and finish.
    • These modifications can be based on your ideas, the information you provide (such as desired model and dimensions), existing drawings, or blueprints.
    • If the product you are seeking is not currently offered, please contact us. We are more than happy to create a model or prototype tailored to your needs.

Contact us for prices.

Please make a note of your chosen Optional Services in the “Order notes form” on Checkout page.
This will allow us to offer you the best offer possible based on your preferences.

Additional information

Material

Wood, HDF 5mm, MDF 5mm, Plastic PLA, Plastic ABS, Acrylic 6mm
